Lock technology has been an integral part of human security for centuries, evolving from simple wooden mechanisms to highly sophisticated systems designed to protect valuables, property, and personal safety. Among the many types of locks, pin tumbler locks stand out as one of the most widely used and trusted locking mechanisms around the world. Renowned for their simplicity, reliability, and security, pin tumbler locks are found everywhere—from homes and offices to industrial sites and public facilities.
But what exactly are pin tumbler locks, how do they work, and where are they most commonly used? This article dives deep into the design, function, and applications of pin tumbler locks, explaining why they continue to be a cornerstone of mechanical security solutions globally.

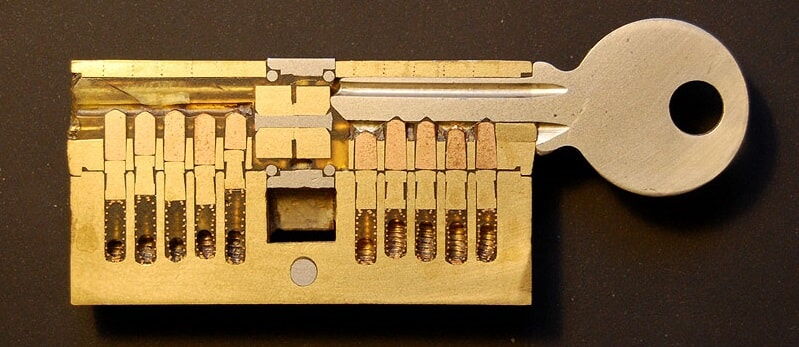

A pin tumbler lock, often called a Yale lock (after the famous lock inventor Linus Yale Jr.), is a type of cylinder lock that uses a set of pins of varying lengths to prevent unauthorized access. It is sometimes also referred to as a circle pin tumbler lock or simply a tumbler lock.
The fundamental idea behind a pin tumbler lock is that it can only be opened by a key designed specifically to align all the pins at the correct heights. These pins block the rotation of the lock’s plug unless they are lifted precisely to the shear line—the interface between the plug and the surrounding cylinder. When aligned correctly, the plug can rotate freely, allowing the lock to be opened.
Pin tumbler locks are among the most common locks used today due to their effectiveness and versatility. They are utilized in a wide range of applications, including:
Door locks for residential and commercial buildings
Cabinets and lockers
Gaming and vending machines
Elevators
Bicycle locks
Coin-operated devices such as washing machines and vending machines
Padlocks
Their ability to offer secure locking with a simple, mechanical design has made them a standard security feature worldwide.
To appreciate how a pin tumbler lock functions, it is important to understand its primary components:
The cylinder is the external housing where the key is inserted. It holds the pins and springs and forms the outer shell of the locking mechanism.
The plug fits inside the cylinder and is the rotating part of the lock. When the correct key is inserted, the plug rotates to engage or disengage the locking mechanism.
Pins are small cylindrical pieces inside the plug, arranged in pairs. Each pair consists of:
Driver pins (Top pins): The upper pins that block the plug from turning when no key is inserted or when the wrong key is used.
Key pins (Bottom pins): These pins rest directly on the key and correspond to the cuts on the key blade.
Springs sit above the driver pins and push them downward into the plug. This spring pressure ensures that pins return to their resting positions when the key is removed.
The cam connects to the plug and operates the locking bolt. When the plug rotates, the cam turns the bolt to lock or unlock the door or device.
The operation of a pin tumbler lock revolves around the interaction between the key and the pin stacks. Each pin stack comprises a driver pin and a key pin pushed down by a spring. When no key is inserted, the pins extend into the plug, preventing its rotation.
Here is a step-by-step explanation of the unlocking process:
Key Insertion: When the correct key is inserted into the cylinder, the notches or cuts on the key lift each key pin to a specific height.
Pin Alignment: The key pins and driver pins align exactly at the shear line between the plug and the cylinder.
Plug Rotation: With the pins aligned, the plug is free to rotate within the cylinder.
Bolt Movement: The rotating plug turns the cam, which moves the locking bolt to the unlocked position.
If the wrong key is inserted, the pins will not align at the shear line, causing the driver pins to extend into the plug and block its rotation. This simple yet elegant mechanism ensures security by only allowing the correct key to operate the lock.
While the basic design remains consistent, pin tumbler locks come in various forms to meet different security requirements:
Standard Pin Tumbler Locks: Most common for residential doors and cabinets.
High-Security Pin Tumbler Locks: Incorporate additional security features such as spool pins or mushroom pins to make lock picking more difficult.
Tubular or Radial Pin Tumbler Locks: Use pins arranged in a circular pattern around the plug, commonly used in vending machines and bicycle locks.
Master Key Systems: Use pin tumbler locks designed so that multiple keys can operate different locks, but one master key can open all.
The versatility and reliability of pin tumbler locks have made them a ubiquitous security solution. Some of the most common applications include:
Pin tumbler locks are the standard for home security, especially in entry doors and interior rooms. Their easy rekeying capability allows homeowners and locksmiths to change keys without replacing the entire lock.
Offices often use pin tumbler locks on doors, cabinets, and filing systems to safeguard sensitive documents and restrict access to authorized personnel.
In gyms, schools, workplaces, and recreational facilities, lockers equipped with pin tumbler locks provide secure storage for personal belongings.
File cabinets, desks, and storage furniture commonly feature pin tumbler locks to prevent unauthorized access.
Tubular pin tumbler locks are frequently found in vending machines, arcade games, and coin-operated washing machines, where compact but secure locking is necessary.
Certain elevator control panels and public access points use pin tumbler locks to prevent tampering and unauthorized use.
Tubular pin tumbler locks are often integrated into bike locks due to their compact size and resistance to picking.
Pin tumbler locks are utilized in hazardous material storage, electrical enclosures, and other critical industrial settings where reliable locking mechanisms are essential.
Several factors contribute to the popularity of pin tumbler locks:
Security: Provides a good balance of security for everyday use with resistance to simple picking techniques.
Rekeyability: Keys can be changed without replacing the entire lock mechanism.
Durability: Built from robust materials designed to withstand daily wear and environmental exposure.
Cost-Effectiveness: Generally affordable compared to more complex locking systems.
Wide Availability: Compatible with a large variety of doors, cabinets, and devices.
Ease of Use: Simple operation that requires no power or electronic components.
Despite their widespread use, pin tumbler locks are not invulnerable:
Picking and Bumping: Skilled individuals can pick or bump these locks, especially those with simpler designs.
Wear Over Time: Pins and springs may wear out, potentially compromising security or smooth operation.
Key Duplication: Unauthorized copying of keys can pose security risks.
To address these issues, manufacturers have developed high-security pin tumbler locks with advanced features like spool pins, serrated pins, and restricted keyways.
While electronic and smart locks continue to gain popularity, mechanical pin tumbler locks remain relevant, especially where simplicity and reliability are priorities. Some trends to watch include:
Hybrid Locks: Combining mechanical pin tumblers with electronic access controls.
Advanced Materials: Using wear-resistant and corrosion-resistant materials to extend lock life.
Improved Security Pins: Enhancing resistance to picking and bumping.
Customization: Tailoring locks for specific industrial or commercial needs.
Pin tumbler locks represent a time-tested and essential component of modern security. Their ingenious design, relying on the precise alignment of pins by a matching key, offers a robust, reliable, and affordable solution for countless locking needs. Whether securing homes, offices, machinery, or valuables, pin tumbler locks continue to provide peace of mind and trusted protection.
As technology evolves, pin tumbler locks will likely continue to adapt and integrate with new security systems, maintaining their place as a fundamental part of the lock and key landscape.
